The lamps in the car must be replaced, regardless of whether it has burned out or not. Over time, the bulb of the lamp becomes cloudy, and the brightness of the lamp decreases.
It is advisable to have spare lamps in the car
Before replacing the lamps, you need to disconnect the wire from the negative terminal of the battery
Replacing bulbs in the headlight

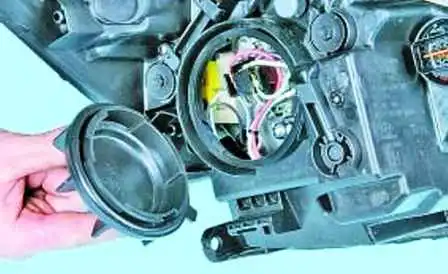

To replace the high/low beam bulbs, turn counterclockwise and remove the cover for the low/high beam and tail light bulbs

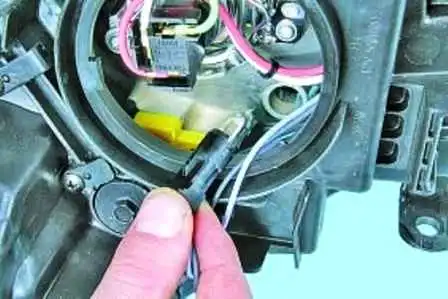

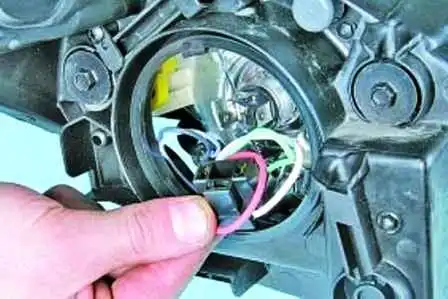

Disconnect the wiring harness from the dipped/high beam lamp

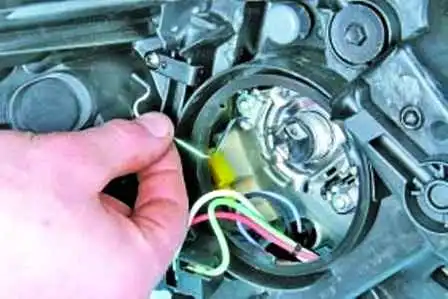

Remove the spring retainer from the groove on the reflector

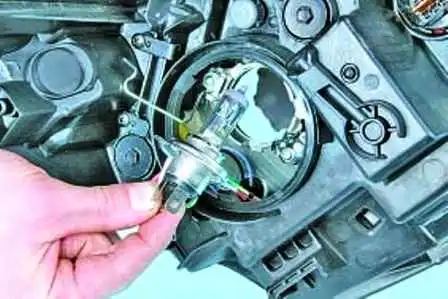

Remove the low/high beam lamp
Install the H4 lamp in reverse order
Do not touch the lamp bulb with your fingers, stains on the bulb will cause darkening. You can take the lamp only with clean gloves. If there are stains on the lamp, then they must be removed with a cloth dipped in alcohol
Replacing the parking light bulb

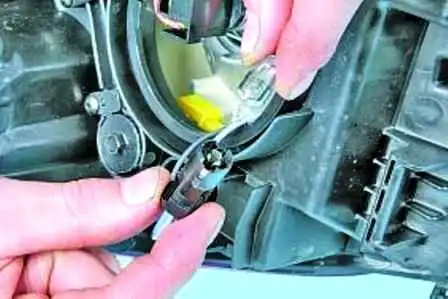

Remove the side light lamp cover from the reflector
Remove the lamp from the ceiling
Install the W5WL/L lamp in reverse order
Replacing the front turn signal bulb

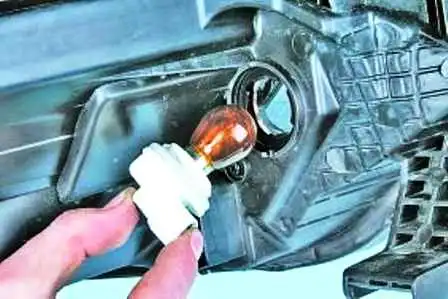

Turn the turn signal bulb holder counterclockwise and remove the bulb holder from the headlight

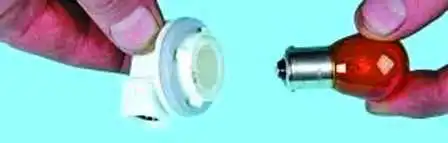

Pressing on the lamp, turn it counterclockwise and remove it from the socket
Install the front indicator lamp PY21W in reverse order
Replacing the turn signal side light bulb

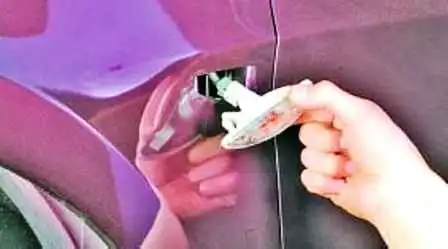

We move the turn signal lamp in the direction of the car and remove it from the opening in the wing

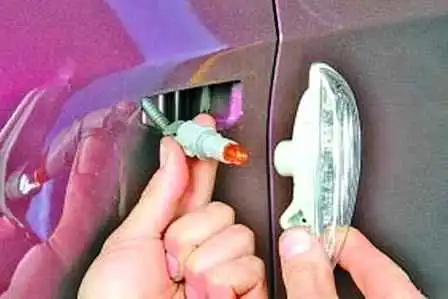

Turn the cartridge counterclockwise and remove it from the turn signal lamp

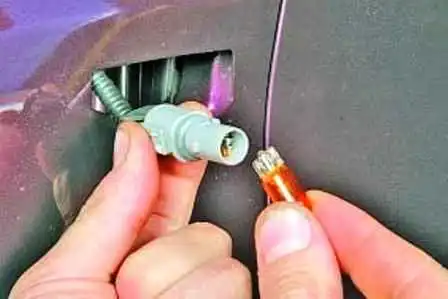

Remove the lamp from the socket
Installing the lamp and the repeater in the reverse position research
Replacing the rear fog light bulb (reversing light bulb in the right rear light)

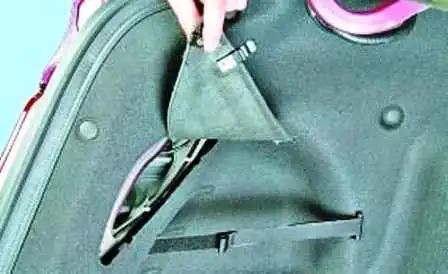

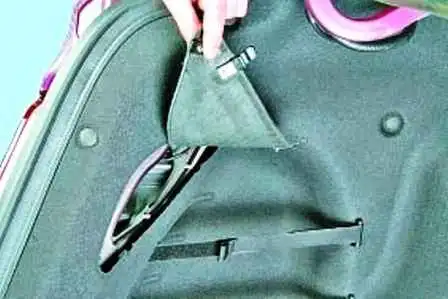

We unfasten the latches and open the cover of the technological hole in the side lining of the trunk

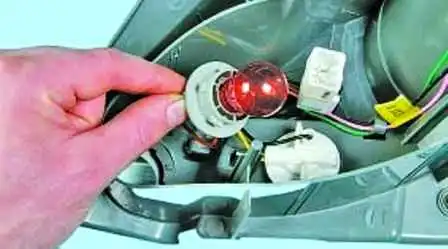

Turn the bulb holder counterclockwise and remove it from the lamp body

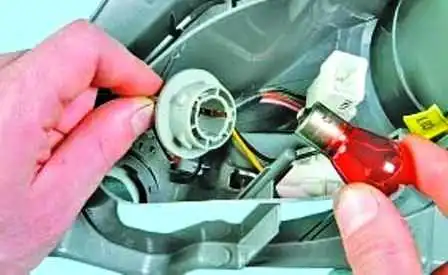

Click on the lamp, turn it counterclockwise and remove the lamp from the socket
Install the PR21W lamp in reverse order
Replacing the rear turn signal bulb
We unfasten the latches and open the cover of the technological hole in the side lining of the trunk

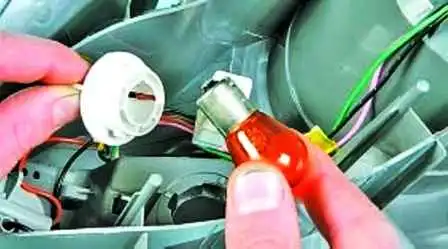

Turn the rear direction indicator lamp socket counterclockwise and remove the lamp socket from the lamp housing
Click on the lamp, turn it counterclockwise and remove it from the cartridge
Install the P21W rear turn signal bulb in reverse order
Replacing the brake/tail light bulb
We unfasten the latches and open the cover of the technological hole in the side lining of the trunk

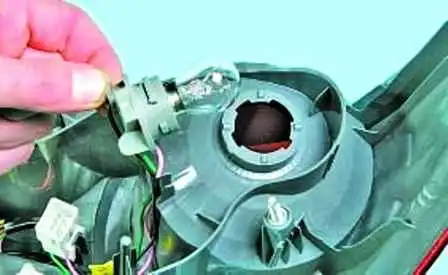

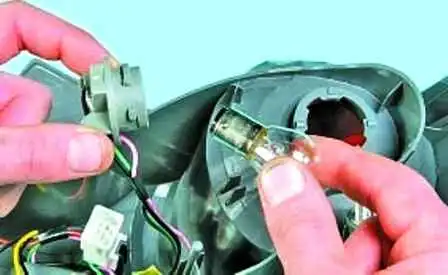

Turn the lamp socket counterclockwise and remove the socket with the lamp from the lamp body
Click on the lamp, turn it counterclockwise and remove it from the cartridge
Install the 5W/P21 lamp in reverse order

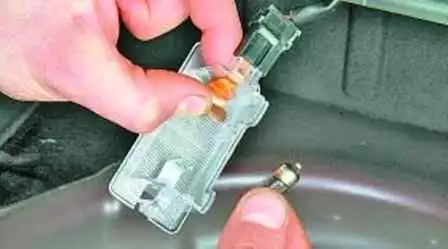

Replacing bulbs in license plate lights

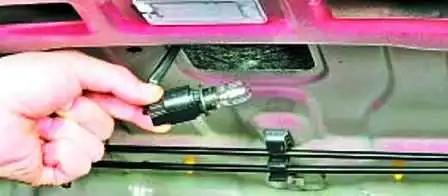

Turn the license plate lamp holder counterclockwise and remove the holder with the lamp from the lamp housing

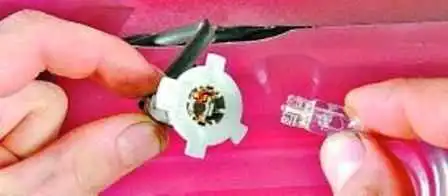

Remove the lamp from the socket
Install the W5WL/L license plate lamp in reverse order
In the same way, we replace the second license plate lamp
Replacing the trunk light

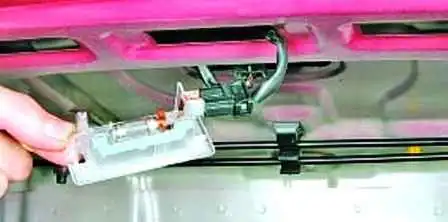

Press the latch and take it out plafond from the opening
Press the spring contact and remove the lamp
Install the W5W trunk light in reverse order
Replacing the additional brake light bulb

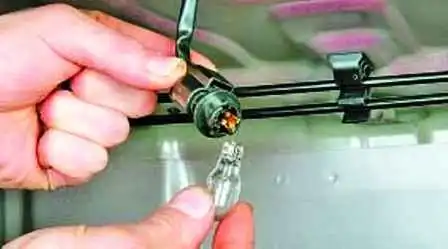

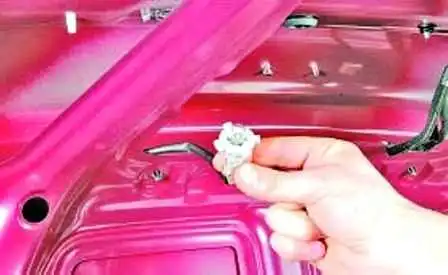

Turn the auxiliary brake light lamp socket counterclockwise and remove the lamp socket from the lamp housing
Remove the lamp from the ceiling
Install the additional brake light bulb W16W in reverse order
Replacing lamps in a ceiling light

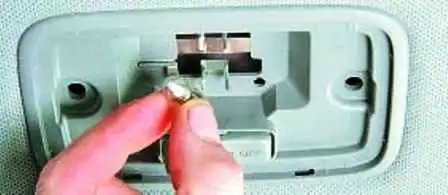

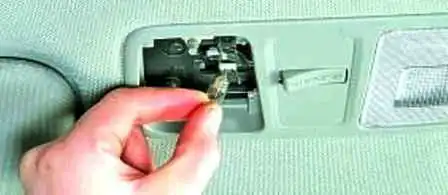

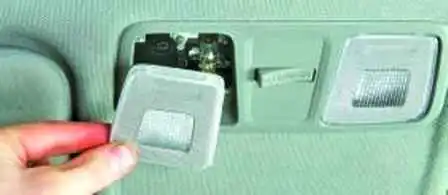

Pry off with a screwdriver and remove the diffuser of the individual lighting of the driver's seat
Removing the lamp
In the same way, we replace the lamp for the individual lighting of the front passenger
Install the FESTOON lamp in reverse order
Changing the lamp in the ceiling light

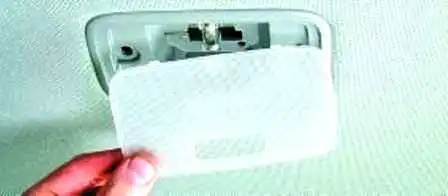

We pry off with a screwdriver and remove the diffuser of the ceiling of the general interior lighting
Removing the lamp
Install the FESTOON lamp in reverse order
To replace the instrument cluster illumination lamps, remove the instrument cluster

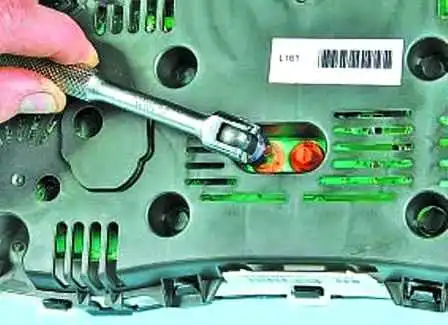

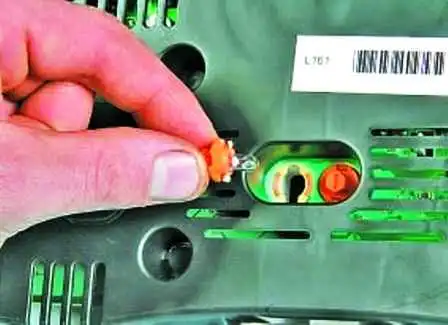

Unscrew the instrument cluster illumination lamp
Remove the lamp
Install the lamp in reverse order.
