The contact group and the ignition switch are replaced in case of wear

We prepare the car and disconnect the negative battery terminal

Replacing the ignition switch and the contact group of the Mazda 6 lock

Remove the airbag and the steering wheel, as indicated in the article "Removing the steering wheel and casings of the steering column Mazda 6"

Replacing the ignition switch and the contact group of the Mazda 6 lock

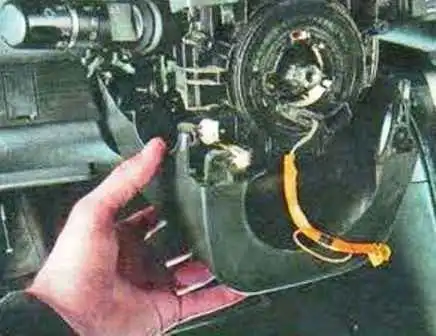

Remove the lower part of the steering column cover

Replacing the ignition switch and the contact group of the Mazda 6 lock

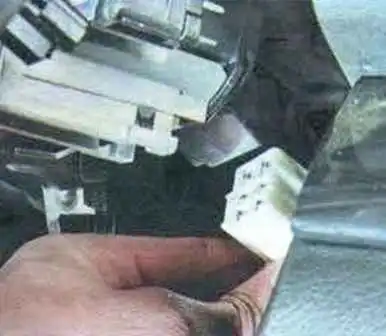

We press the latch and disconnect the block of wires from the contact group of the ignition switch

Замена замка зажигания и контактной группы замка Мазда 6Замена замка зажигания и контактной группы замка Мазда 6

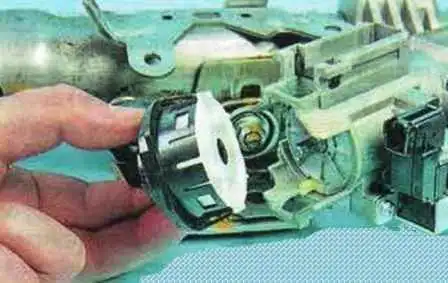

We press the upper and lower latches and remove the contact group from the ignition switch

We install the contact group and all the details in the reverse order

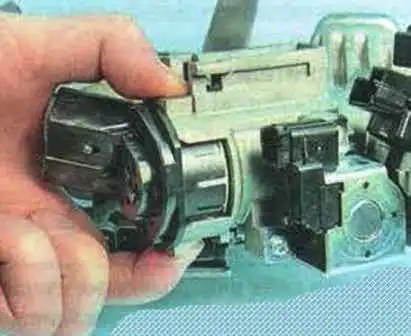

Removing the ignition lock together with the contact group

To remove the ignition lock, you need a drill or a chisel with a hammer

Замена замка зажигания и контактной группы замка Мазда 6Замена замка зажигания и контактной группы замка Мазда 6

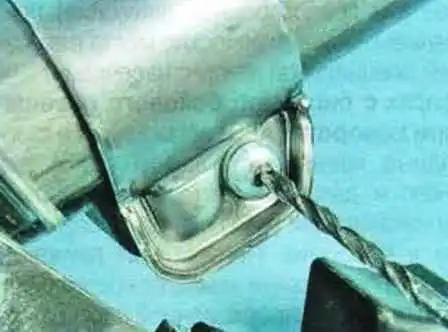

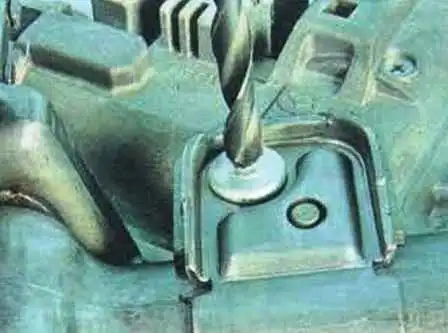

We drill the bolt heads from the upper and left side of the switch attachment to the steering column and remove the ignition switch assembly with the contact group

 Замена замка зажигания и контактной группы замка Мазда 6

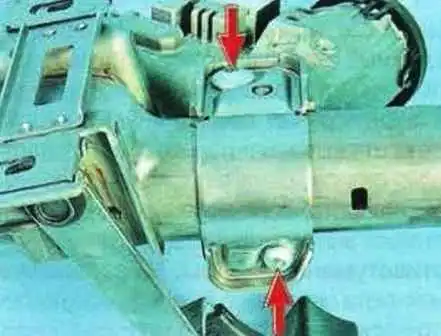

An arrangement of heads of self-tapping screws of fastening of the switch of ignition to a steering column

You can also unscrew the ignition lock bolts with a chisel and hammer. Striking the bolt head with a hammer through a chisel tangentially counterclockwise, unscrew the bolts

Install the ignition switch and all parts in the reverse order
