We remove the shock absorber strut to replace the shock absorber parts or its elements
Place the car on a lift or flat horizontal surface
Loosen the wheel mounting nuts on the side of the task being performed
Raise the front of the car and install it on reliable stops
Unscrew the wheel mounting nuts and remove the front wheel

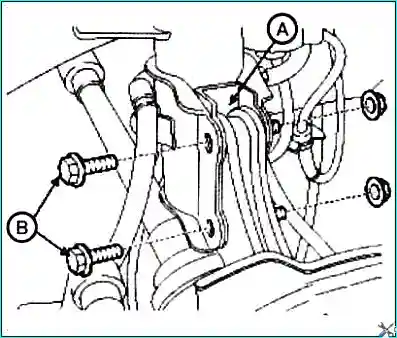

Unscrew the bolts securing the brake hose bracket from the front strut

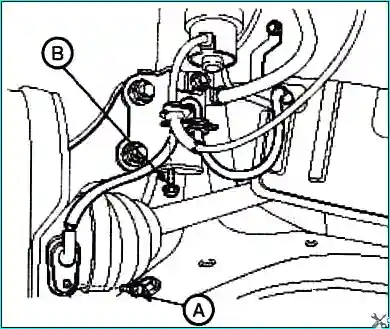

Remove the wheel speed sensor and unscrew the bolts securing the electrical wiring from the front steering knuckle

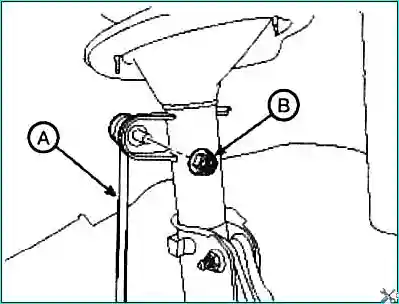

Unscrewing the nut securing the front stabilizer strut from the shock strut

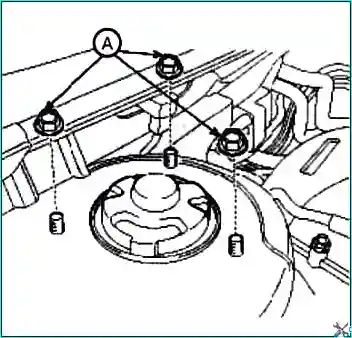

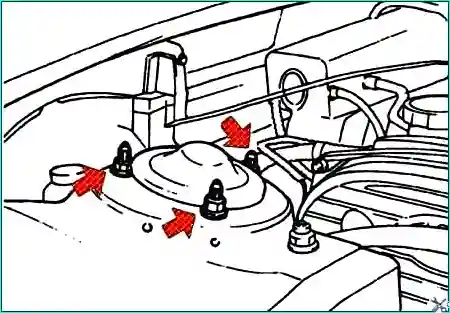

Unscrewing the upper nuts securing the strut shock absorber

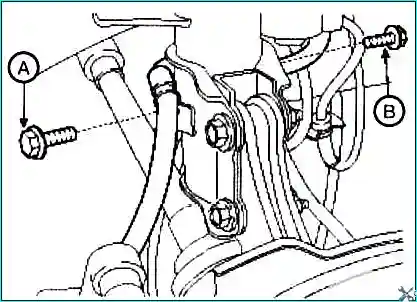

Unscrew the bolts securing the front shock absorber strut assembly from the front steering knuckle
Removing the shock strut
Installing the shock strut
Insert the shock absorber strut and screw in the upper shock absorber strut mounting nuts. Tightening torque of the nuts: 44.1-58.8 Nm
After that, screw in the shock absorber strut bolts into the front steering knuckle. Tightening torque 137.3-156.9 Nm
Screw in the front stabilizer strut nut into the shock absorber strut. Tightening torque 98.1-117.7 Nm
Install the wheel speed sensor and screw in the wiring harness mounting bolts. Tightening torque 6.9-10.8 Nm
Screw in the brake hose mounting bolts to the axle shaft. Tightening torque 6.9-10.8 Nm
Install the wheel and tighten the wheel mounting nuts. Tightening torque 88.3-107.9 Nm

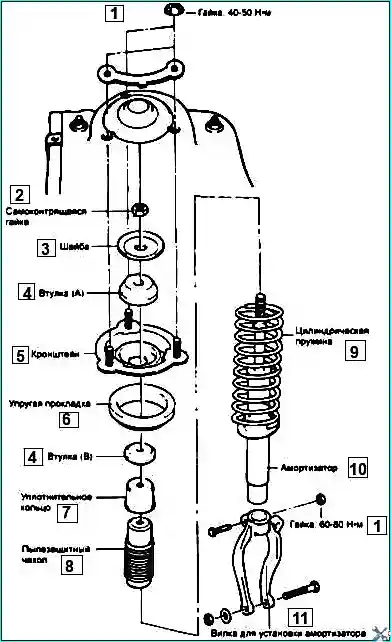

Disassembling the front suspension shock strut

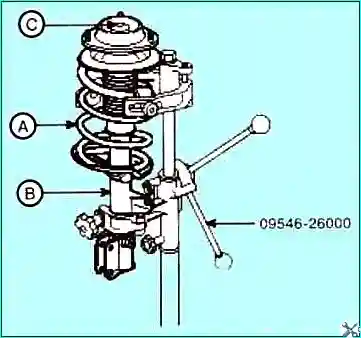

Using the 09546-26000 tool or using spring clamps, compress the spring

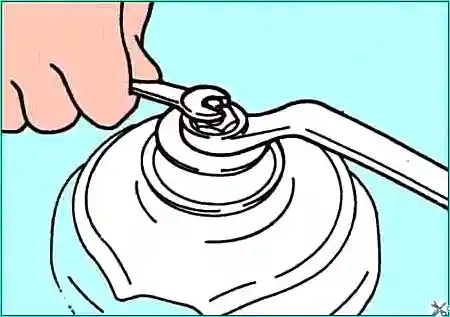

Unscrew the self-locking nut from the shock absorber
Remove the shock absorber support, spring support, spring and boot
Checking the technical condition of the shock absorber
Check the shock absorber support for damage and increased wear. If necessary, replace the part
Check the rubber elements for damage

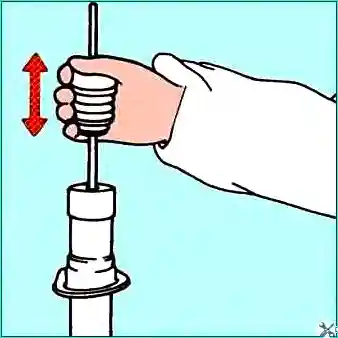

Move the shock absorber rod (A) up and down several times
Make sure there are no extraneous sounds during movement
If any defects are detected, replace the shock absorber as bore
Assembly
The type of spring should be selected by two identification marks located on the spring
The spring should be installed so that the marks are directed towards the steering knuckle

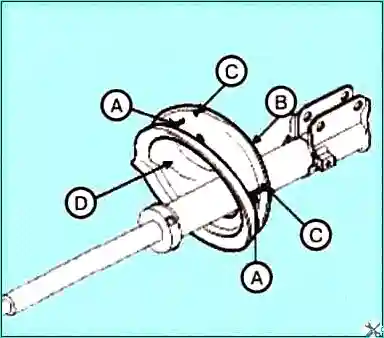

Install the lower spring cushion (D) so that the protrusions "A" fall into the holes (C) in the lower spring support "B"
Press on the spring using the device 09546-26000. Install the spring on the shock absorber
Lift the piston rod completely and install the upper spring support and shock strut support

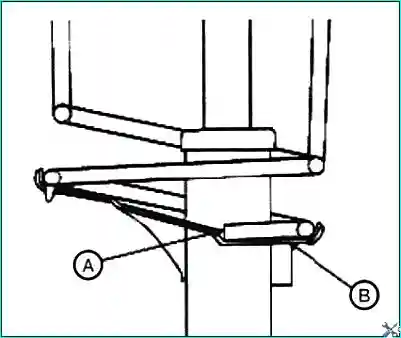

After correctly securing the upper and lower ends of the spring (A) in the upper and lower grooves (B) of the support, carefully tighten the self-locking nut
Remove the spring tightening device and tighten the self-locking nut to a torque of 49-68.6 Nm
