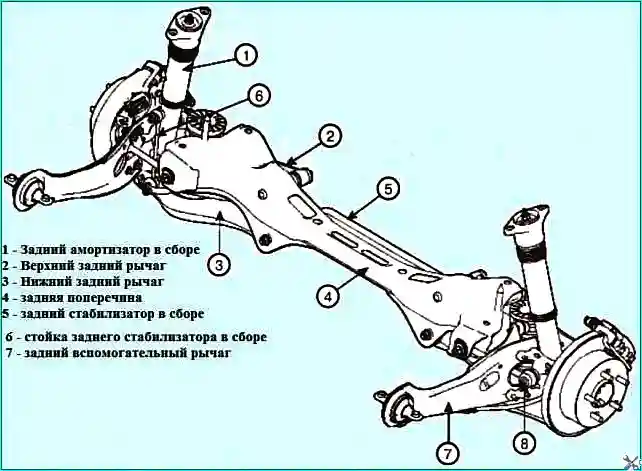

Remove the rear shock absorber to replace the rear suspension parts and the shock absorber itself
Prepare the car and install it on a lift or inspection pit
Loosen the rear wheel mounting nuts on the side of the work being performed.
Raise the rear of the car and remove the wheel

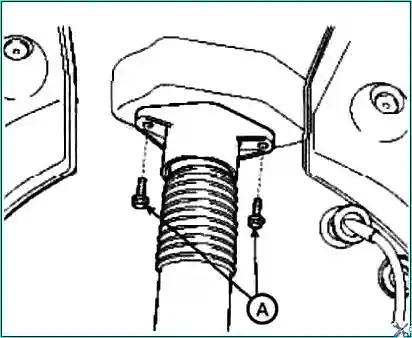

Unscrew the mounting nuts (A) of the shock absorber assembly from the housing

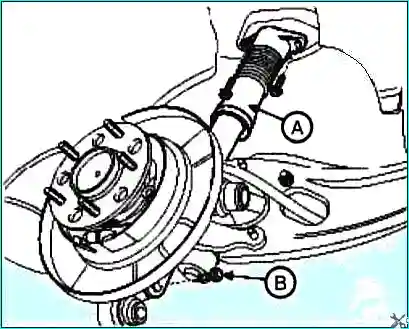

Unscrew the mounting nut (B) of the shock absorber assembly from the steering knuckle, then remove the shock absorber assembly (A)
Checking the technical condition
Check the technical condition of the rubber parts of the shock absorber. If defects or damage are detected, we replace the parts.

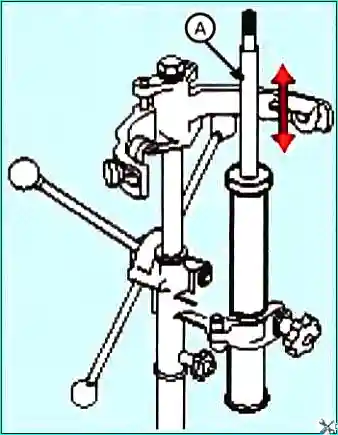

Move the shock absorber rod up and down several times and make sure that there are no extraneous sounds during movement.
If defects are detected, replace the shock absorber assembly
Installing the shock absorber

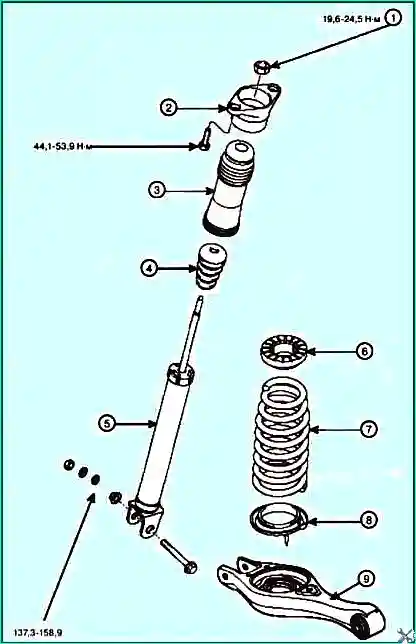

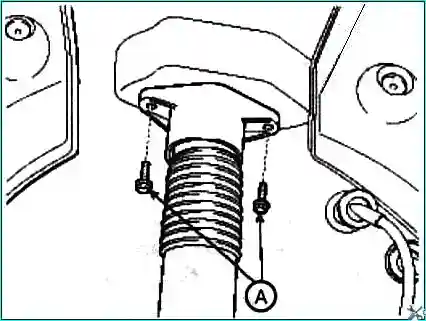

Tighten the bolt (A) of the shock absorber to the body. Tightening torque 44.1-53.9 Nm

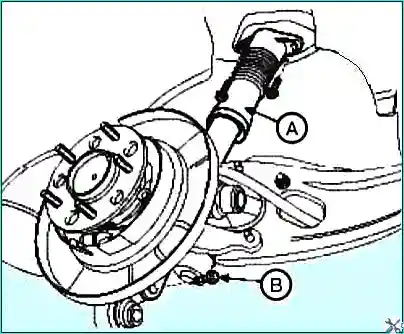

Tighten the nut (B) of the shock absorber to the steering knuckle. Tightening torque 137.3-156.9 Nm
Install the wheel on the hub. Tightening torque 88.3-107.9 Nm
