We remove the electric fan for repair or replacement

We prepare the car for work and disconnect the negative terminal of the battery

How to replace the Mazda 6How to replace the electric fan cooling engine Mazda 6

Open the radiator plug and pump out about two liters of coolant with a large syringe

Loosen the clamp of the radiator outlet hose attachment, squeezing its bent ears with pliers, and shift the clamp along the hose

How to replace the electric fan cooling engine Mazda 6

Remove the hose from the radiator nozzle

How to replace the Mazda 6How to replace the electric fan cooling engine Mazda 6

We remove the return hose from the radiator nozzle

Removing the expansion tank

How to replace the Mazda 6How to replace the electric fan cooling engine Mazda 6

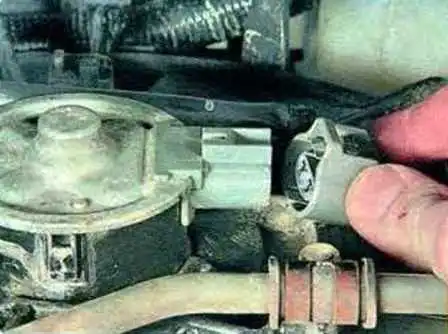

We press the latch and disconnect the wiring block from the connector of the main electric fan

How to replace the Mazda 6How to replace the electric fan cooling engine Mazda 6

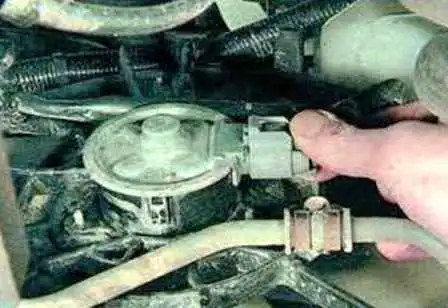

We also disconnect the wiring block from the connector of the additional electric fan

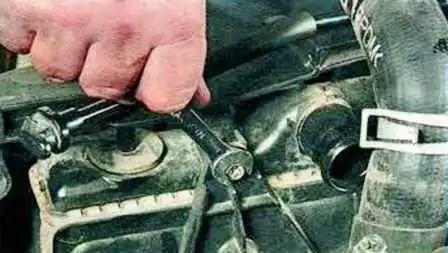

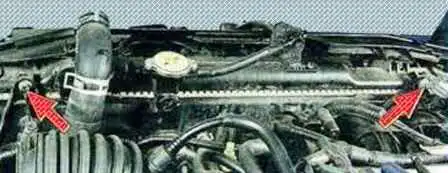

Unscrew the two upper bolts securing the electric fan casing to the radiator of the cooling system

How to replace the electric fan cooling engine Mazda 6

The picture shows the mounting bolts of the electric fan casing to the radiator

How to replace the electric fan cooling engine Mazda 6

We remove the radiator fan assembly with the casing, removing it from the engine compartment upwards

Installing the electric fan in reverse order

We bring the coolant level to normal

Removing the motor of the engine cooling fan

We remove the electric fans of the engine cooling system assembled with a casing, as indicated above

Removing the motor of the engine cooling fanRemoving the motor of the engine cooling fan

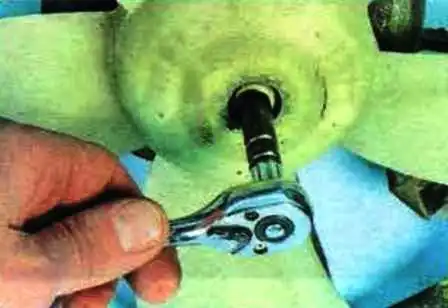

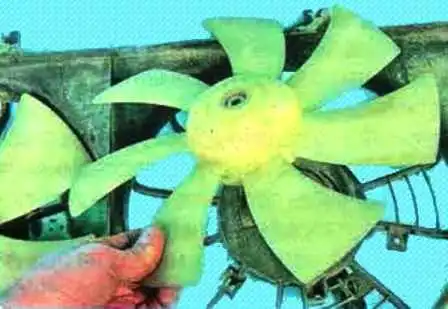

Unscrew the nut of the fan impeller attachment to the motor shaft and remove the impeller

Removing the motor of the engine cooling fanRemoving the motor of the engine cooling fan

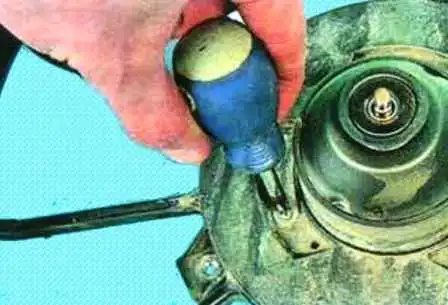

Unscrew the screws securing the electric motor to the casing and remove the electric motor

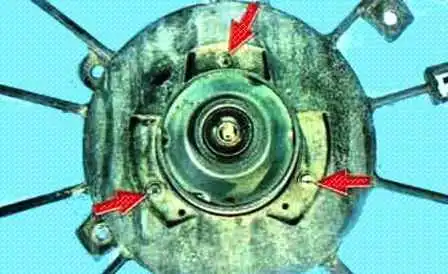

The location of the screws for attaching the electric motor to the fan in the picture

Install the electric motor and the fan with the casing in reverse order
