Management Correction Systems

Depending on the configuration of the car, they include:

- ABS (anti-lock brake system);

- the stabilization system of the ESC trajectory with controller control system in rotation and the anti-passing system;

- emergency braking system;

- Assistance system when starting when lifting

ABS (anti-lock brake system)

The anti-locking system prevents wheel lock with intensive braking and thus allows you to optimize the braking path and keep the car handling

ABS, makes it possible in the process of emergency braking, a detour arising from an obstacle without a collision with it. But this system can increase the braking path, in particular with a low clutch of the wheels with an expensive (on a wet and slippery road, etc.)

Each inclusion of the system is accompanied by vibration brake pedal. An anti-lock system in any case cannot improve the characteristics of the clutch of the wheels with the road.

Feature of all-wheel drive cars

In 4WD Lock mode, it can allow the wheels briefly block to optimize the brake path on a very weak ground (snow, dirt, sand, etc.)

Therefore, in the event of emergency braking, you need to press the brake pedal strongly and long.There is no need to resort to intermittent pressing on the pedal.ABS adjusts an applied force in the brake system

Disorders;

- If icons light on the instrument panel (Системы помощи управления автомобилем Рено Аркана) and (Системы помощи управления автомобилем Рено Аркана), Accompanied by messages "Check the ABS", "Check the brakes" and "Check the system.Stabilization ": This means that ABS, ESC and emergency braking system are disabled.The normal operation of the brake system is always preserved;

- If icons are displayed on the instrument panel (Системы помощи управления автомобилем Рено Аркана), (Системы помощи управления автомобилем Рено Аркана), (Системы помощи управления автомобилем Рено Аркана) and  Системы помощи управления автомобилем Рено Арканаand the "Brakes are faulty" is displayed: This indicates a brake system malfunction.

In both cases, you need to contact the manufacturer"s company

Emergency braking system with electronic brake force dispenser (Depending on the configuration of the car)

Emergency braking system complements ABS system and reduces car brake path

Operating principle

The system determines cases when emergency braking is performed.In this case, the emergency braking system instantly develops the maximum braking force, which allows you to quickly use the ABS system

Braking mode using ABS is supported while the brake pedal is pressed.

ESC trajectory stabilization system with controller control system in turn and anti-slip system

The stabilization system of the trajectory (ESC) ensures the controllability of the car in extreme conditions (evasion of collision with an obstacle, loss of adhesion with an expensive when turning, etc.)

Системы помощи управления автомобилем Рено Аркана

Control of manageability in turn

This system optimizes ESC effect when there is insufficient turning (with the loss of front clutch wheels with expensive)

Antiprobux system

The anti-slip system reduces the sink of leading wheels and improves the controllability of the car while touching the place, with sharp accelerations or braking

Disable ESC function

In some cases (when driving on a very weak soil: snow, dirt, sand, etc. or with anti-skid chains on wheels) The system can limit the engine power to reduce the wheel slip.

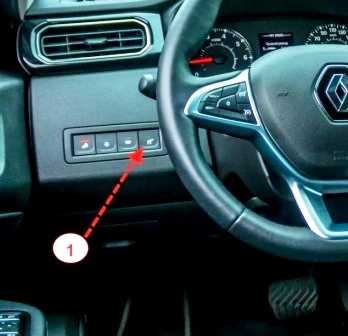

If there is no need to use the system, you can turn it off by pressing the switch 1.

Lamp lights up on the instrument shield (Система стабилизации траектории ESC) And, depending on the configuration of the car, the message "Turns off the stabilization system" appears.

When this function is turned off, the anti-slip system is turned off

The ESC trajectory stabilization system with control system control system in turn and the anti-slip system provide additional security, so it is not recommended to disable these systems while driving. To return to the previous position at the first time, press the switch 1.

Note: The system will automatically turn on when the ignition is turned on or when speeding is about 50 km / h in AUTO and 2WD modes and about 60 km / h in 4WD Lock mode

Operating principle

The sensor on the steering wheel tracks the trajectory of the motion defined by the driver. Other sensors installed in the car track the real motion trajectory.

The system compares the driver"s control influence with the actual trajectory of the car movement and, if necessary, corrects the trajectory, acting on the brake mechanisms of the wheels and / or changing the engine power.

When the system is turned on on the instrument panel, the warning lamp starts flashing (Система стабилизации траектории ESC)

Fault

If the system detects a malfunction, signal lamps light up (Системы помощи управления автомобилем Рено Аркана) и (Система стабилизации траектории ESC) And, depending on the configuration of the car, the message "Check the stabilization system" appears on the instrument panel.

In this case, the ESC trajectory stabilization system with the control system control system in turn and the anti-passing system is disconnected.

If these indicators continue to be displayed on the dashboard when the ignition is turned off and on, you need to contact the manufacturer"s company.

Help management system on lifting

Depending on the magnitude of the slope, this system helps the driver to get touched on the rise.

She prevents the car back to roll back, providing automatic car trails at the moment when the driver shoots his leg with the brake pedal to transfer it to the accelerator pedal

System Work

The system is valid provided that the mechanical transmission lever is in a position other than the neutral (selector of the automatic transmission modes - in a position other than N or P), and when the car is fixed (the brake pedal is pressed)

The system holds the car for about two seconds. Then the brakes are released, (the car moves depending on the slope)

Note:

The system of assistance when starting on the rise cannot always prevent the car rollback (on steep lines, etc.)

In all cases, the driver can prevent car rollback back by pressing the brake pedal

The system of assistance when starting on the lift should not be used for a long stop: use brake pedal

This system is not intended to hold the car by a fixed time for a long time.
