In the article we will consider the replacement of the coolant temperature sensor, the DMRV sensor and the absolute pressure and air temperature sensor in the suction manifold

Replacement of temperature sensors for Mazda 6

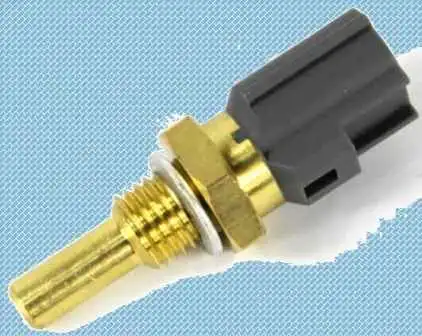

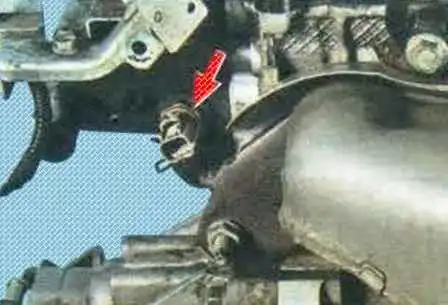

The coolant temperature sensor is installed in the water distributor housing located on the bracket on the left side of the engine above the gearbox

Disconnect the negative battery terminal

We press the latch and disconnect the wiring block from the sensor

Replacement of temperature sensors Mazda COURT 6Replacement of temperature sensors for Mazda 6

Unscrew the coolant temperature sensor from the hole in the water distributor

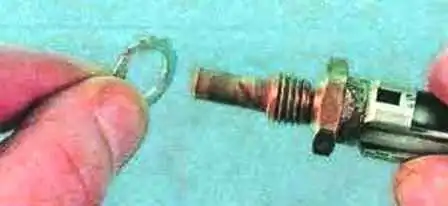

If the washer is strongly compressed, replace it

Install the sensor in reverse order and top up the engine coolant to normal

Replacement of the mass flow and intake air temperature sensor

Replacement of temperature sensors for Mazda 6

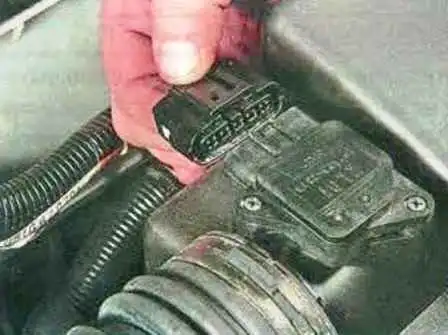

We press the latch and disconnect the wiring block from the sensor

Replacing temperature sensors Mazda COURT 6Replacement of temperature sensors for Mazda 6

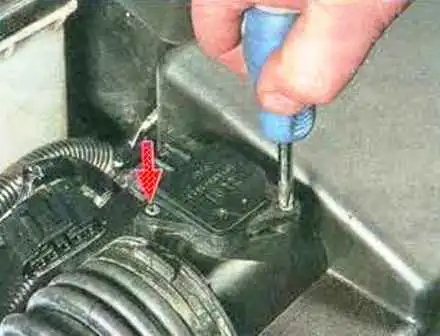

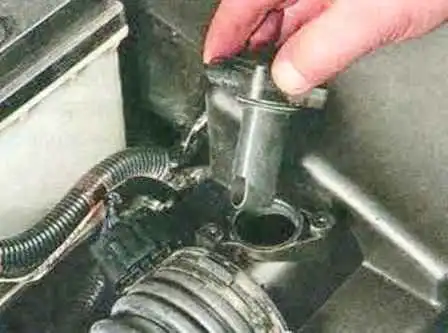

Unscrew the two sensor mounting screws and remove the sensor from the opening in the air filter nozzle

Installing the sensor in reverse order

Replacement of the combined absolute pressure and temperature sensor of the intake air in the intake manifold

Replacement of temperature sensors Mazda COURT 6Replacement of temperature sensors for Mazda 6

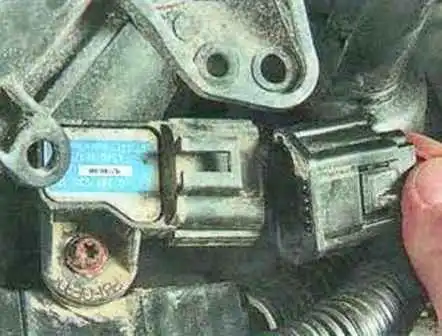

We press on the lock of the pad of wires and disconnect the pad from the sensor

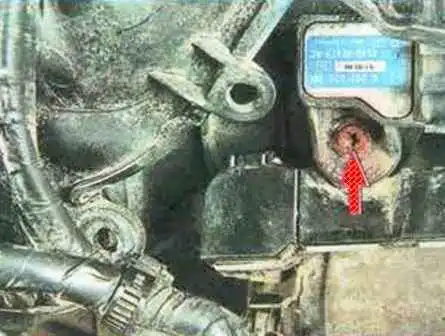

Unscrew the sensor mounting bolt to the intake manifold and remove the sensor

Installing the sensor in reverse order
