Electrical equipment is made according to a single-wire circuit: the negative terminals of sources and consumers of electricity are connected to the "ground" - the body and the power unit of the car, which act as a second wire
Body Front Wiring Harness Wiring Diagram in article - "Nissan Almera Body Front Wiring Diagram»

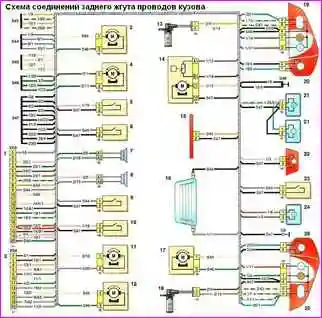

1, 2 — pads for connection with the front harness of the body; 3 - electric lock of the right rear door; 4 - power window of the right rear door; 5 - limit switch for the lamp of the ceiling light at the right front door; 6 - limit switch for the lamp of the interior lighting dome at the right rear door; 7 - right rear speaker; 8 - left rear speaker: 9 - limit switch for the ceiling lamp for interior lighting at the left rear door; 10 - limit switch for the lamp of the ceiling light at the left front door; 11 - power window of the left rear door; 12 - electric lock of the left rear door; 13 - speed sensor of the right rear wheel; 14—fuel module; 15 - additional braking signal; 16 - rear window heating element; 17 - electric drive for locking the trunk lid; 18 - speed sensor of the right rear wheel; 19 — right rear light on the wing; 20 - right rear light on the trunk lid; 21 - license plate light; 22 - rear fog lamp; 23 - limit switch for the trunk light; 24 - dome lighting trunk; 25 — left rear light on the wing; 26 - left rear light on the trunk lid

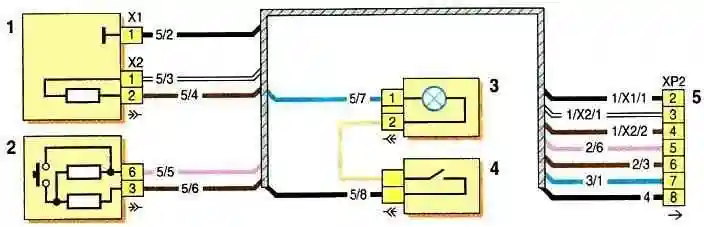

Wiring diagram for airbag and glove box lighting:
1 - front passenger airbag; 2 - front passenger airbag switch: 3 - dome light for the glove box; 4 - glove box lighting switch; 5 - connection block with front wiring harness
