Remove the air intake grille to access the wiper mechanism and when replacing the glass and front fender, as well as for replacement
Open the hood and set it on stop
Remove the windshield wiper arms, described in the article - Removing and installing the Hyundai Solaris windshield wiper

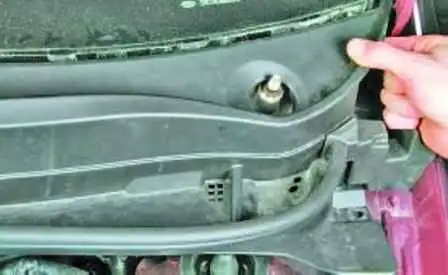

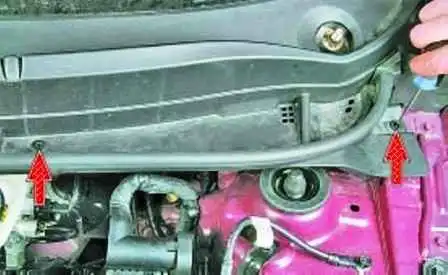

We press the latches of the four plastic caps for fastening the grille of the air intake duct into the cavity of the caps

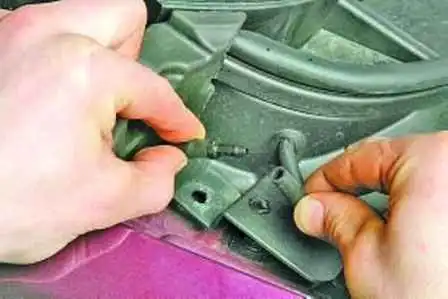

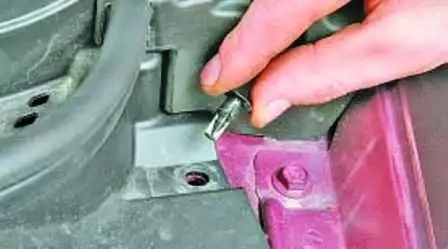

Removing the caps

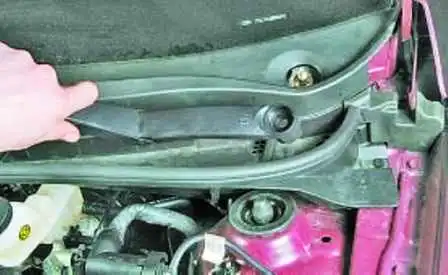

Pull the front part of the grille up and bring the upper grille holders out from under the wind window
On the inside of the grille, disconnect the main windshield washer hose
Remove the hose from the opening of the air intake grille

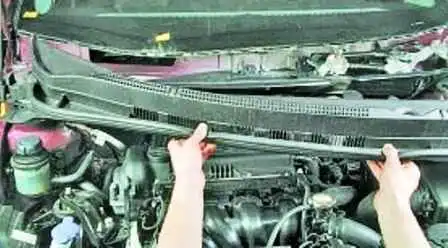

Removing the grate
Install the grate in reverse order
Removing the front fender
Remove the front wheel liner from the side of the wing to be removed
Removing the front bumper, described in the article - Removing the fenders and bumpers of the Hyundai Solaris car
Remove the air intake grille as described above

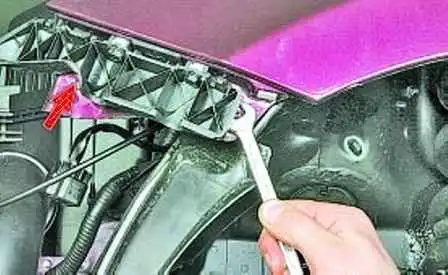

Under the front bumper holder we unscrew the two bolts securing the wing to the body

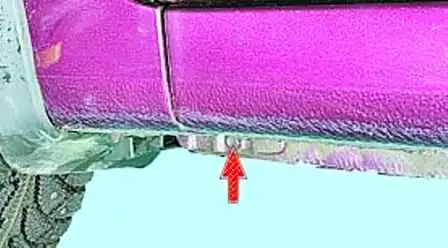

We unscrew the two bolts securing the wing to the threshold of the body

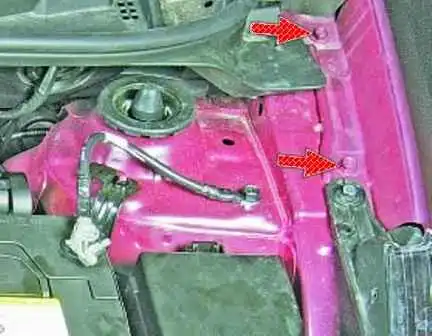

We unscrew the two bolts of the upper fastening of the wing to the frame of the engine compartment

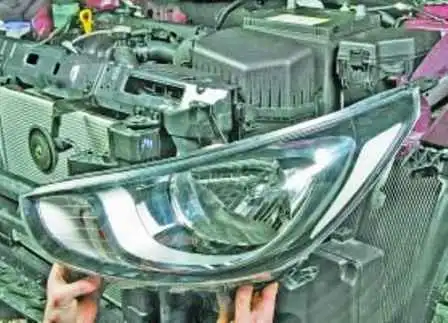

Remove the headlight from the car, as described in the article - Removing the headlights, lights, horn and steering column switch of a Hyundai Solaris car

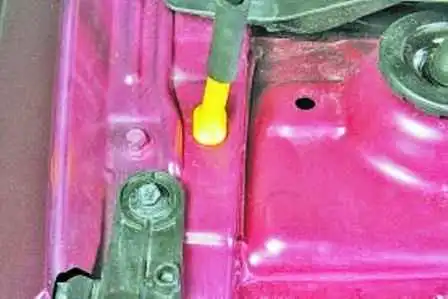

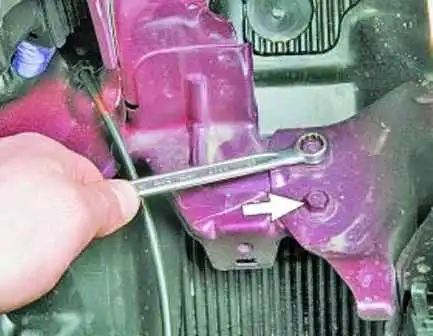

We unscrew the two bolts securing the wing in the engine compartment and remove the wing
Install the wing and all the details in reverse order.
