Check the quality and tension of the engine timing belt every time the engine is serviced.

A loose belt wears out the teeth of the belt quickly and can cause the belt to jump over the toothed pulleys, resulting in camshaft misalignment and potentially causing catastrophic engine damage.

In the absence of special testers, the belt tension can be checked according to the “rule of thumb”, and the deflection can be determined using a ruler.

Checking and replacing the timing belt of a Renault Sandero car

According to this rule, the deflection between the centers of the pulleys is from 180 to 280 mm, the deflection should be approximately 6 mm.

You can also check the approximate tension by twisting the leading branch of the belt along the axis.

Checking and replacing the timing belt of a Renault Sandero car

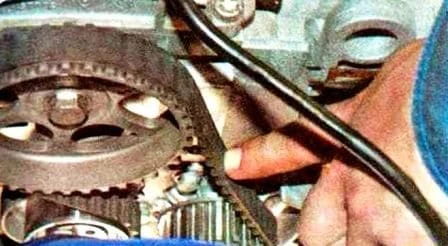

If you manage to twist the branch more than 90˚ with your hand, the belt is loose.

When inspecting the belt, you need to pay attention so that there are no cracks, cuts, delaminations.

The surface of the belt must be free of oil.

Preparing the car for the task. We install it on a lift or a viewing ditch.

Remove the right support of the power unit for this:

We substitute a jack under the oil pan through a wooden or rubber block.

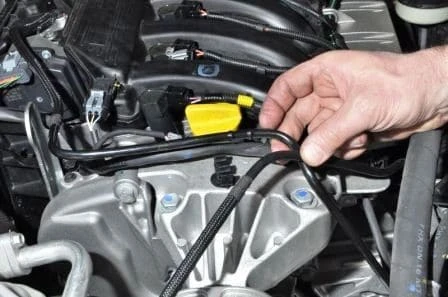

We remove the fuel pipes from the holders located on the support bracket

Checking and replacing the timing belt of a Renault Sandero car

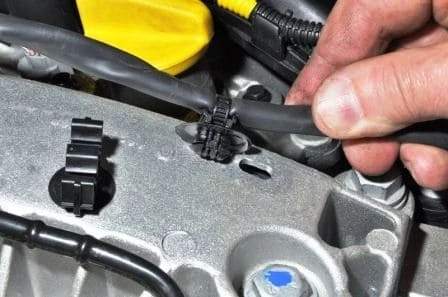

Remove the wire harness holder from the support bracket hole

Checking and replacing the timing belt of a Renault Sandero car

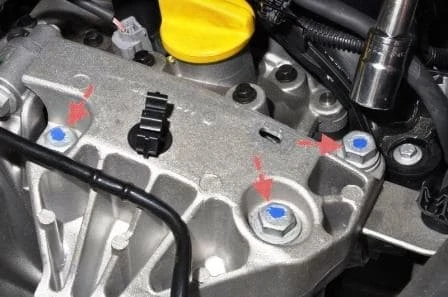

With a 16 head, unscrew the three bolts securing the support bracket to the top cover of the timing drive

Checking and replacing the timing belt of a Renault Sandero car

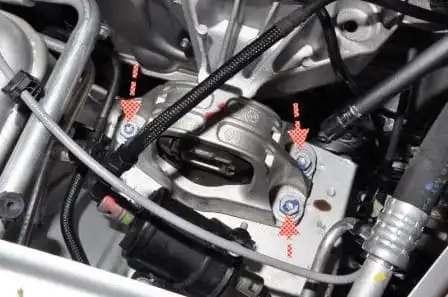

We unscrew the three bolts securing the support to the body

Checking and replacing the timing belt of a Renault Sandero car

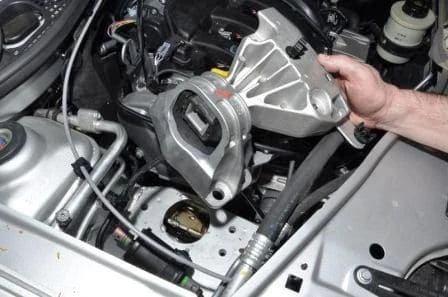

Removing the right support

Checking and replacing the timing belt of a Renault Sandero car

Removing the right mudguard (article - Removing protection Renault Sandero power unit)

Checking and replacing the belt on the K4M 1.6L engine

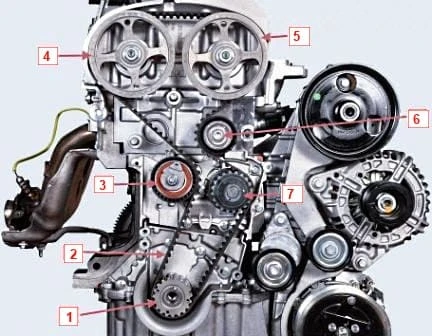

K4M engine timing drive: 1 - crankshaft sprocket, 2 - timing belt, 3 - idler, 4 - exhaust camshaft sprocket, 5 - intake camshaft sprocket, 6 - support roller, 7 - coolant pump sprocket

The location and installation of the belt is shown in Figure 6.

Checking and replacing the timing belt of a Renault Sandero car

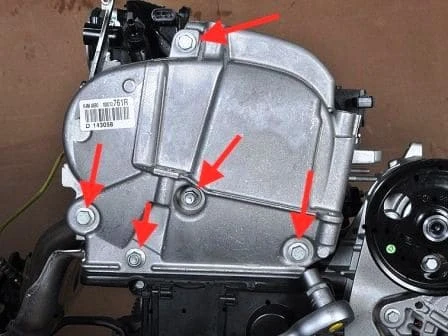

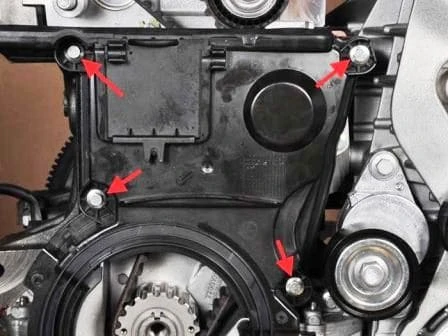

With a 13 head, unscrew the three bolts and two nuts securing the upper timing cover

Checking and replacing the timing belt of a Renault Sandero car

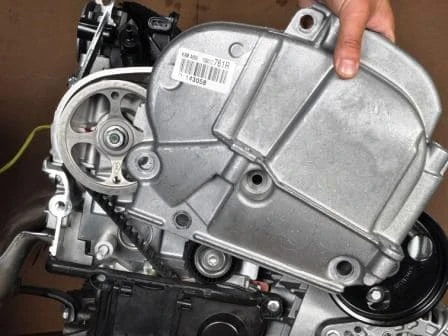

Remove the top cover

Checking and replacing the timing belt of a Renault Sandero car

With a head of 18, turn the crankshaft clockwise and inspect the timing belt

Checking and replacing the timing belt of a Renault Sandero car

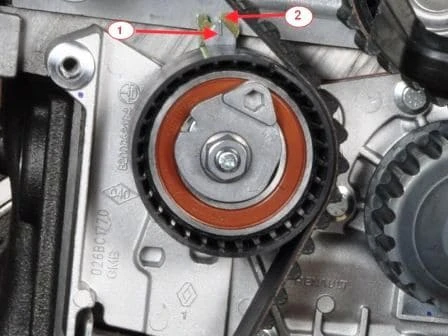

At normal belt tension, pointer 1 should align with the notch of pointer 2 of the tensioner

If the movable pointer is offset relative to the fixed pointer, then tighten the belt.

Checking and replacing the timing belt of a Renault Sandero car

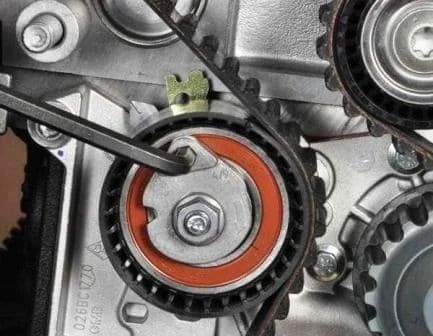

We loosen the tightening of the tension roller fastening nut with a 13 wrench and turn the roller clockwise with a hexagon by 6, pulling the belt until the pointers align.

While holding in this position, tighten the roller nut.

To replace the belt, remove the auxiliary drive belt (Replacing the accessory belt Renault Sandero)

Remove the top timing cover

We turn on the fifth gear and the assistant presses the brake pedal

Checking and replacing the timing belt of a Renault Sandero car

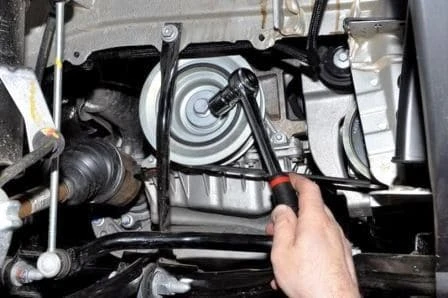

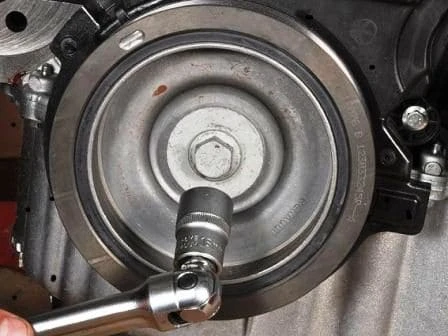

With a head of 18, we unscrew the bolt securing the accessory drive pulley

Checking and replacing the timing belt of a Renault Sandero car

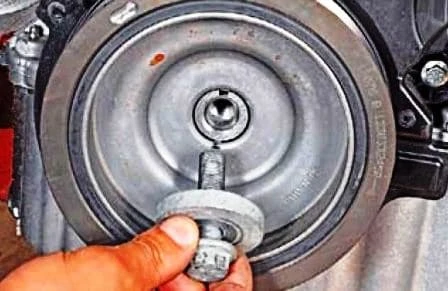

Removing the bolt with washer

Checking and replacing the timing belt of a Renault Sandero car

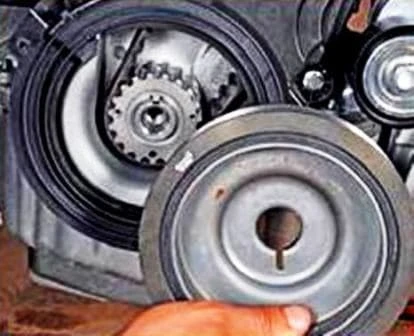

Remove the accessory drive pulley

Checking and replacing the timing belt of a Renault Sandero car

With a head of 8, unscrew the four bolts securing the lower timing cover

Remove the cover

Set the crankshaft and camshafts to the top dead center of the first cylinder.

To do this, unscrew all the candles.

We screw the bolt of the accessory drive pulley into place by installing a set of suitable washers.

To determine the position of the camshafts, it is necessary to remove the plugs from the holes in the left end of the cylinder head.

Checking and replacing the timing belt of a Renault Sandero car

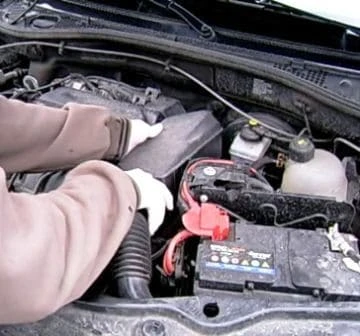

Remove the air intake with a resonator

Checking and replacing the timing belt of a Renault Sandero car

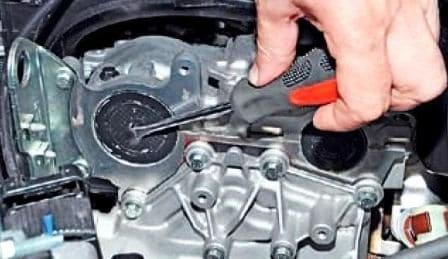

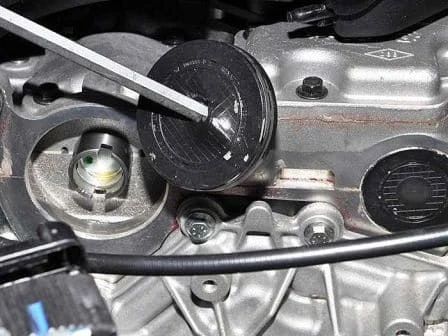

In the center of the plug, pierce a hole with a screwdriver

Checking and replacing the timing belt of a Renault Sandero car

Remove the plug from the hole in the cylinder block. Also extract another stub

Checking and replacing the timing belt of a Renault Sandero car

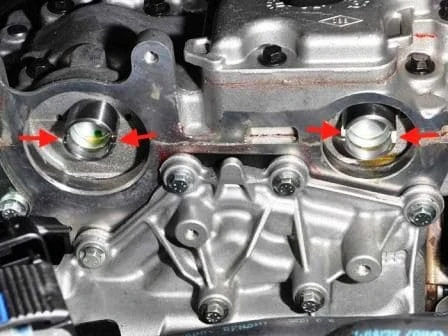

We turn the crankshaft clockwise, the grooves on the ends of the camshafts should take a horizontal position, and are shifted down relative to the axes of the camshafts fishing.

To fix the camshafts in this position, a device can be made from a metal plate five millimeters thick.

Checking and replacing the timing belt of a Renault Sandero car

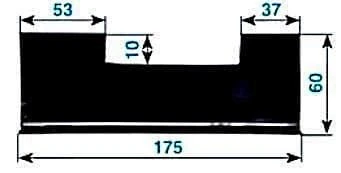

The dimensions of the fixture are shown in the figure

Checking and replacing the timing belt of a Renault Sandero car

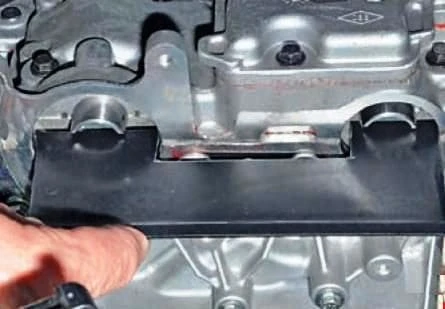

Install the device in the grooves of the shafts

We check that the crankshaft is in the TDC position of the pistons of the 1st and 4th cylinders. For this:

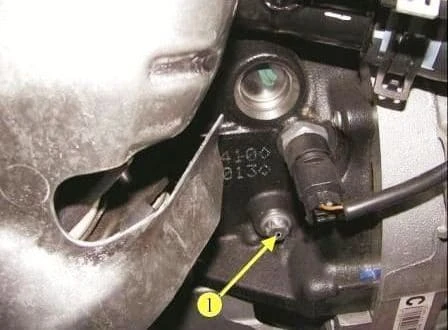

Unscrew the plug with the E14 head

Removing the plug for the TDC lock: 1 - plug

Insert the installation pin into the hole (shown with the pallet removed)

Checking and replacing the timing belt of a Renault Sandero car

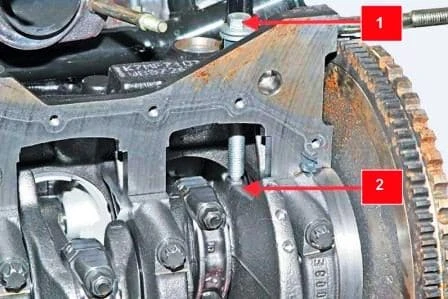

When the crankshaft is in the TDC position of the pistons of the 1st and 4th cylinders, the mounting pin 1 must be screwed into the hole to the end of the thread and abut against the milled area 2 on the crankshaft web.

After that, the crankshaft will be impossible to turn.

If, when screwing in the adjusting pin, it rests, and the end of the adjusting nut on the pin does not come into contact with the end face of the boss of the hole in the cylinder block (there will be a gap between the nut and the boss), then you need to turn a little (by removing the device from the grooves of the camshafts) crankshaft shaft counterclockwise.

Then you need to screw the mounting pin into the hole of the cylinder block to the end (until the ends of the pin nut and the boss of the hole in the block touch) and turn the crankshaft clockwise until the platform of the shaft cheek stops against the pin.

Install the camshaft locking tool, if it was removed.

An M10 bolt can be used as a mounting pin

Checking and replacing the timing belt of a Renault Sandero car

We screw two adjusting nuts onto the bolt and lock them so that the length of the threaded part of the bolt is 75 mm.

Turn the roller counterclockwise, reducing the tension of the timing drive

Checking and replacing the timing belt of a Renault Sandero car

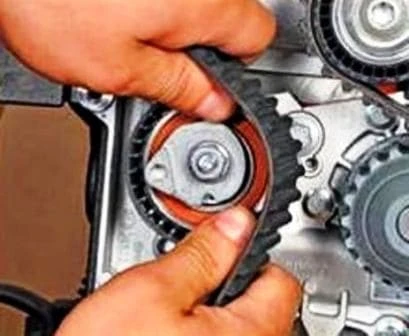

Remove the belt from the tensioner

Checking and replacing the timing belt of a Renault Sandero car

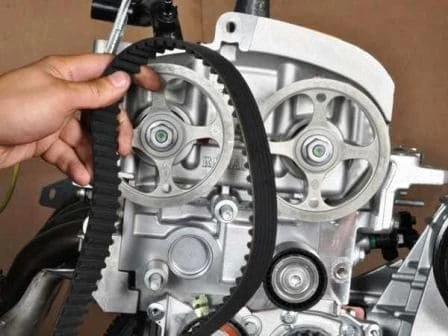

Remove the belt from the coolant pump pulleys, crankshaft and camshafts

Checking and replacing the timing belt of a Renault Sandero car

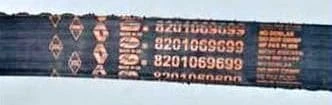

Belt marking (number of teeth 131, width 25.4 mm)

Checking and replacing the timing belt of a Renault Sandero car

When replacing the belt, it is advisable to replace the tension and support roller, for this we unscrew the tension roller fastening nut

Checking and replacing the timing belt of a Renault Sandero car

Remove the tension roller from the coolant pump housing stud

Checking and replacing the Renault Sandero timing belt

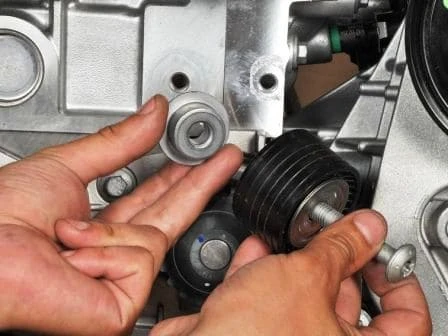

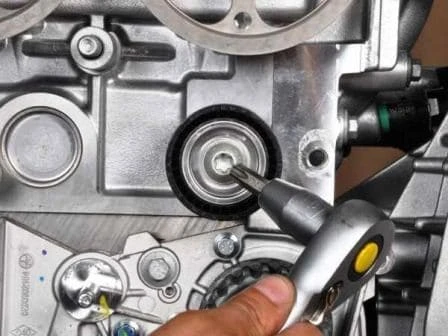

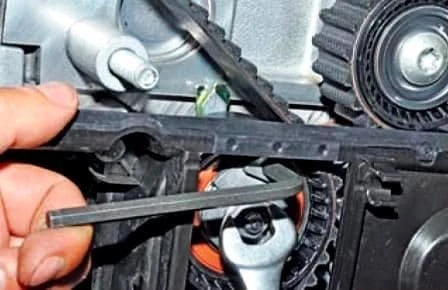

Use the TORX T50 key to unscrew the screw securing the support roller

Remove the support roller and its bushing.

Checking and replacing the timing belt of a Renault Sandero car

Installing the timing belt

We orient the belt so that the arrows on the belt coincide with the direction of movement of the belt clockwise.

We install the belt on the gear pulleys of the crankshaft, coolant pump, camshaft pulleys.

Then, at the same time, we put the belt on the tension roller and install the roller on the stud of the coolant pump housing.

Checking and replacing the timing belt of a Renault Sandero car

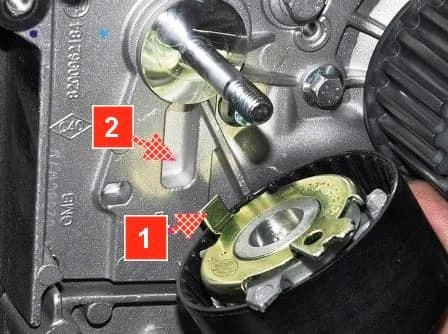

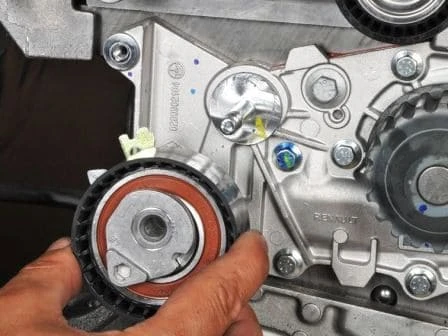

When installing the tension roller, insert the bent end 1 of the roller bracket into the recess 2 of the coolant pump housing.

Adjust the belt tension as described above.

We unscrew the locking pin from the hole in the cylinder block and remove the device for fixing the camshafts.

Rotate the crankshaft two turns clockwise until the grooves on the camshafts take the position corresponding to the top dead center of the 1st piston.

We twist the plug into the hole in the cylinder block.

Checking and replacing the timing belt of a Renault Sandero car

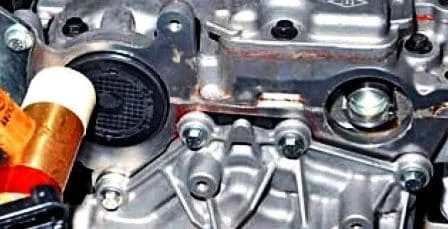

With light blows of a hammer with a plastic striker, we press new plugs into the holes of the cylinder head.

Assemble the parts in reverse order.

We replace the bolt securing the auxiliary drive pulley with a new one and tighten it with a torque of 40 Nm, then tighten it by 110˚.

We tighten the bolt for fastening the bracket for the tension roller of the auxiliary drive belt with a torque of 21 Nm.

We tighten the bolt for fastening the timing belt support roller with a torque of 50 Nm.

Tighten the nut of the timing belt tension roller with a torque of 28 Nm.

We tighten the M8 bolt for fastening the upper timing cover with a torque of 22 Nm.

We tighten the M10 bolt for fastening the upper timing cover with a torque of 44 Nm.

We tighten the bolt for fastening the lower timing cover with a torque of 8 Nm.

Replacing the timing belt on the K7J and K7M engines

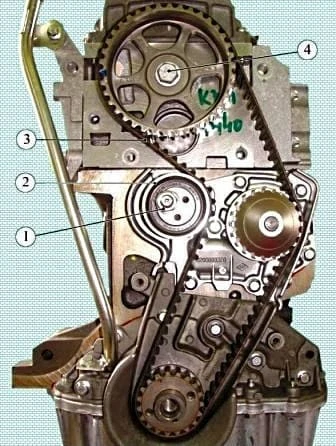

Removing the timing belt of the K7M engine: 1 - nut for fastening the idler axle, 2 - tension roller, 3 - timing belt, 4 - bolt for fastening the camshaft pulley

We set the piston of the first cylinder to the TDC of the compression stroke and remove the auxiliary drive pulley and the lower cover of the timing belt, as described in the article - Checking and replacing the Renault Sandero auxiliary drive belt

Checking and replacing the timing belt of a Renault Sandero car

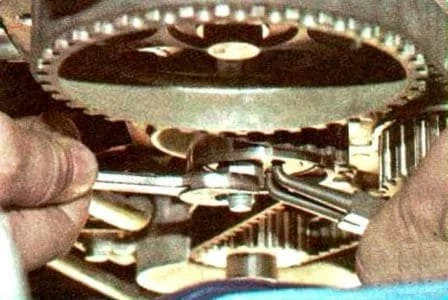

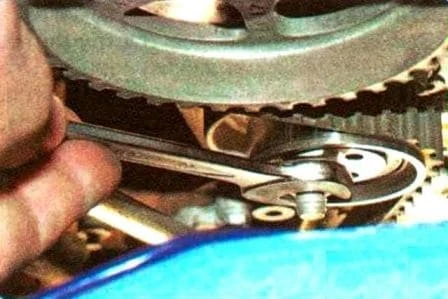

We remember or mark in any way the position of the tension roller relative to the axis, loosen the tightening of the roller fastening nut

Checking and replacing the timing belt of a Renault Sandero car

Turn the roller clockwise, thereby loosening the tension of the timing belt

Checking and replacing the timing belt of a Renault Sandero car

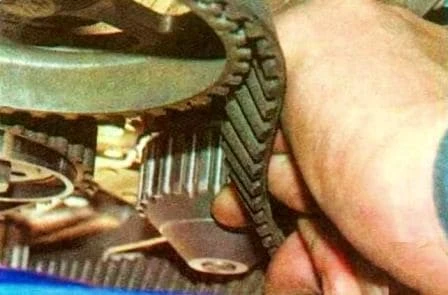

Remove the belt from the toothed pulley of the water pump

Checking and replacing the timing belt of a Renault Sandero car

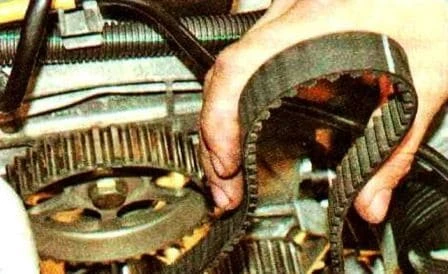

Remove the belt from the camshaft

Checking and replacing the timing belt of a Renault Sandero car

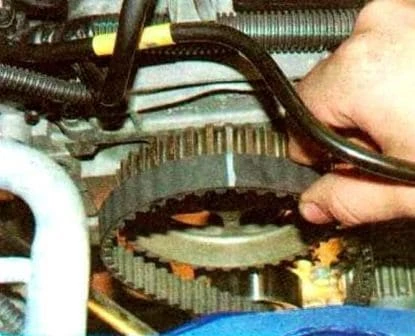

Remove the belt from the crankshaft and tensioner

Checking and replacing the timing belt of a Renault Sandero car

And remove the belt completely

The original belt must be marked with arrows indicating the direction of its movement when the engine is running.

If there are no such arrows on the belt, then you need to apply them with paint or a felt-tip pen to set the belt in its original position.

Checking and replacing the timing belt of a Renault Sandero car

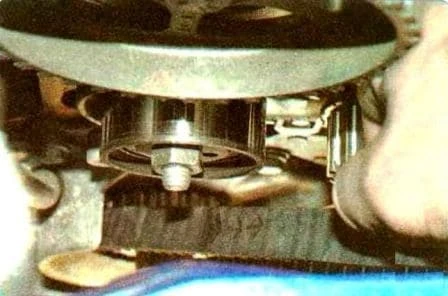

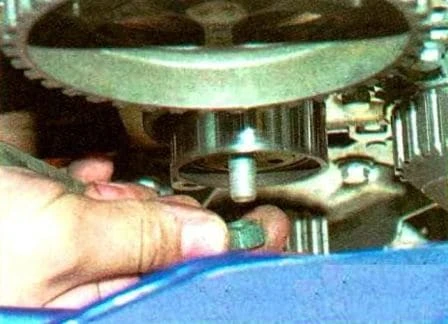

To replace the tension roller, finally unscrew the nut from its axis

Checking and replacing the timing belt of a Renault Sandero car

Shooting a video

Checking and replacing the timing belt of a Renault Sandero

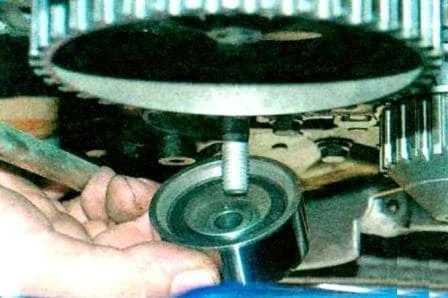

Install the new tension roller in reverse order. In this case, the holes for a special key should be directed outward.

Installing the belt

Checking and replacing the timing belt of a Renault Sandero car

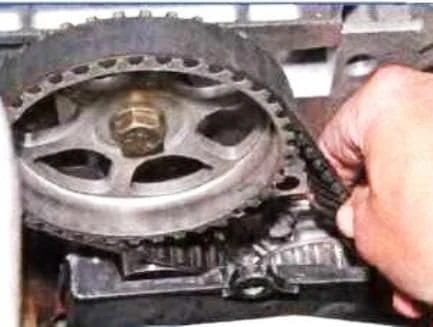

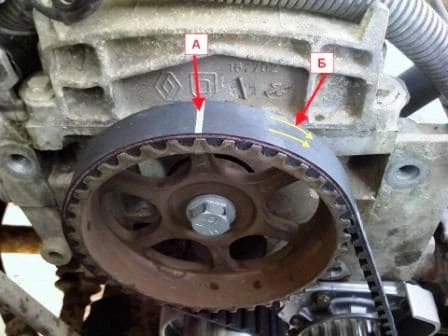

We install the belt first on the camshaft pulley, orienting it with the arrows "B" in the direction of movement when the engine is running and aligning the risk "A" with the alignment mark on the pulley.

Then we pull the leading branch onto the water pump pulley

Checking and replacing the timing belt of a Renault Sandero car

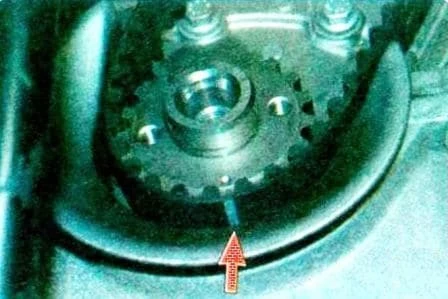

And the crankshaft pulley, also aligning the notch on the belt with the alignment mark on the pulley.

After that, install the belt on the tension roller.

We tighten the belt by turning the tension roller counterclockwise until the marks made earlier coincide, and tighten the roller fastening nut.

We install the accessory drive pulley on the crankshaft and turn the crankshaft by two turns for the fastening bolt and check that the marks are set correctly.

After that, we assemble all the parts in the reverse order.
