The filter element is replaced after 15 thousand kilometers of the car

In dusty conditions, we replace the filter element more often. We remove the air filter housing for repair, as well as for access to other units and parts of the power plant.

This task will require a Torx T25, Torx E8, flat blade screwdriver

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

Unfasten the rubber fastening strap

Disconnect the resonator pipe from the pipe cover of the air filter housing

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

Let's move the resonator to the side

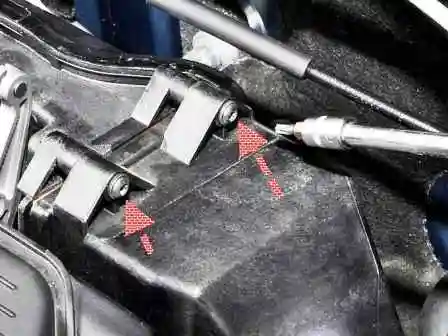

We unscrew the two screws securing the cover to the air filter housing

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

Remove the cover of the air filter housing with a replaceable element

Removing the replacement element

We clean the cavity of the air filter cover and install a new element in reverse order

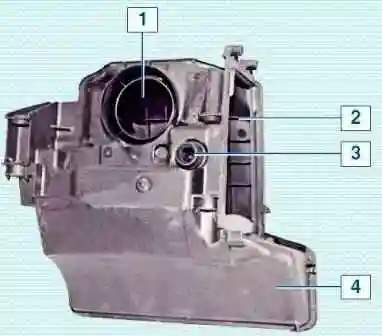

Removing and installing the air filter housing

Disconnect the negative battery terminal

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

Remove the intake silencer

Remove the air filter cover as described above

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

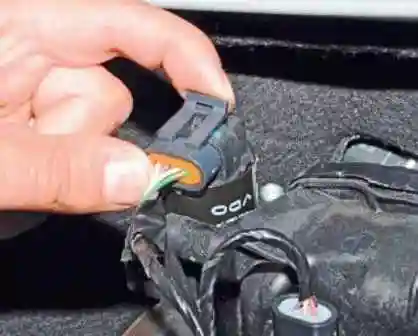

On the K4M engine, we depress the latch of the idle speed control wiring harness block

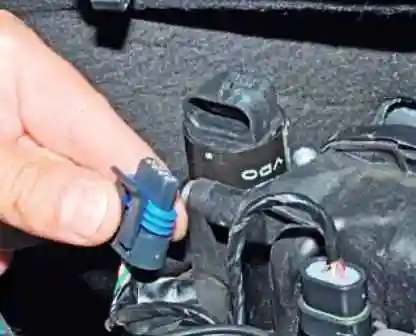

Disconnect the shoe from the solenoid valve

Removing the Renault Duster air filter element and housing

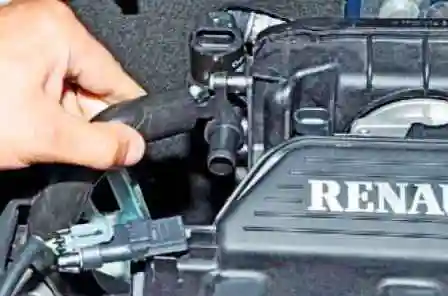

Disconnect the air supply hose from the regulator nozzle

Removing the Renault Duster air filter element and housing

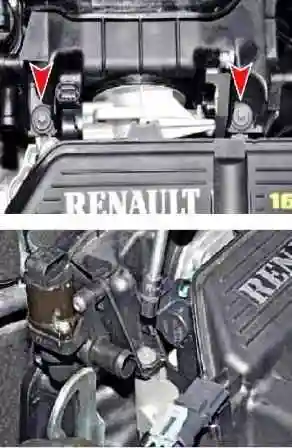

We unscrew the two mounting bolts and remove the bolts from the holes of the filter housing

Removing the Renault Duster air filter element and housingRemoving the Renault Duster air filter element and housing

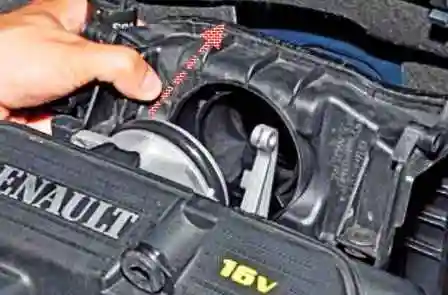

We move the filter housing from the nozzle of the throttle assembly in the direction of the arrow in the photo

Remove the air filter housing.

Removing the Renault Duster air filter element and housing

Install the air filter housing and all parts in reverse order.
