Let's consider the removal of the connecting rod and piston group without removing the engine from the car

We prepare the car and install it on a viewing ditch or lift

We remove the cylinder head, as indicated in the article "Removing and repairing the cylinder head of the UAZ-3151, -31512, -31514, -31519 engine"

Drain the oil and remove the engine pan

We remove the oil pump, discussed in the article "Removal and installation of oil system elements UAZ-3151, -31512, -31514, -31519"

If replacement of cylinder liners is not provided, then it is necessary to fix them (for engines with replaceable liners)

Removing the connecting rod and piston group of the UAZ engine

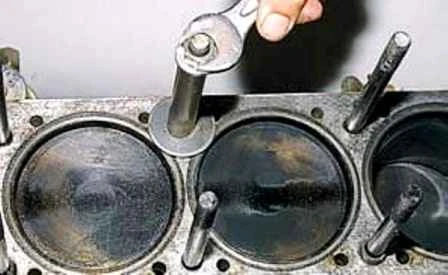

We select suitable washers and bushings and fix the sleeves, as shown in the figure

Removing the connecting rod and piston group of the UAZ engine

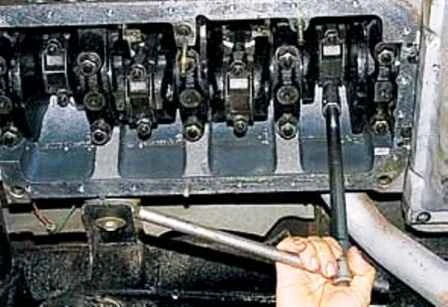

Using a 15 head, unscrew the two nuts securing the connecting rod cover

Remove the connecting rod cover

Push out the piston with the connecting rod up

Removing the connecting rod and piston group of the UAZ engine

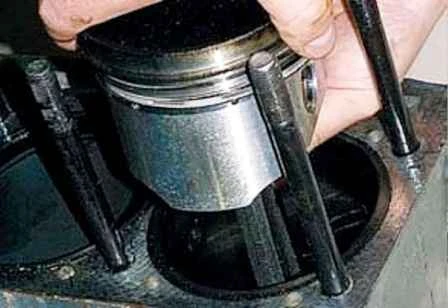

Remove the piston with the connecting rod from the cylinder

If you need to remove the cylinder liners, then mark them, and press out the cylinder liners with a special puller

Removing the connecting rod and piston group of the UAZ engine

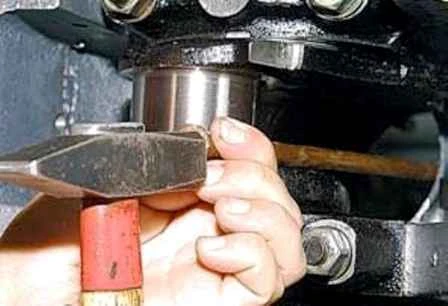

If there is no puller, then we knock out the sleeve through a soft metal mandrel

Removing the sleeves and gaskets

Further operations for disassembling and installing the connecting rod and piston group will be considered in the following articles on engine repair - How to assemble the connecting rod and piston group UAZ-3151, -31512, -31514, -31519

Removing the connecting rod and piston group of the UAZ engine

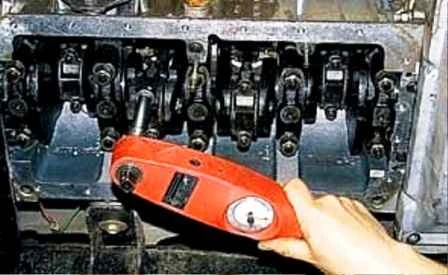

After the connecting rods with pistons are installed, we tighten the nuts of the connecting rod caps with a torque wrench. The tightening torque of the nuts of the connecting rod caps is 6.8-7.5 kgcm.

Further assembly is carried out in reverse order

When installing the cylinder head and the pallet, we replace the gaskets
